Dakota Turf Tender Topdresser 410-Toro

Save time and effort with the Turf Tender 410.

Available in pull-behind and mounted models, the Turf Tender 410 series from DAKOTA Peat & Equipment is designed for superintendents to save time and labor costs, and meet turf maintenance needs, be it  spreading dry or wet, light or heavy, wide or narrow.

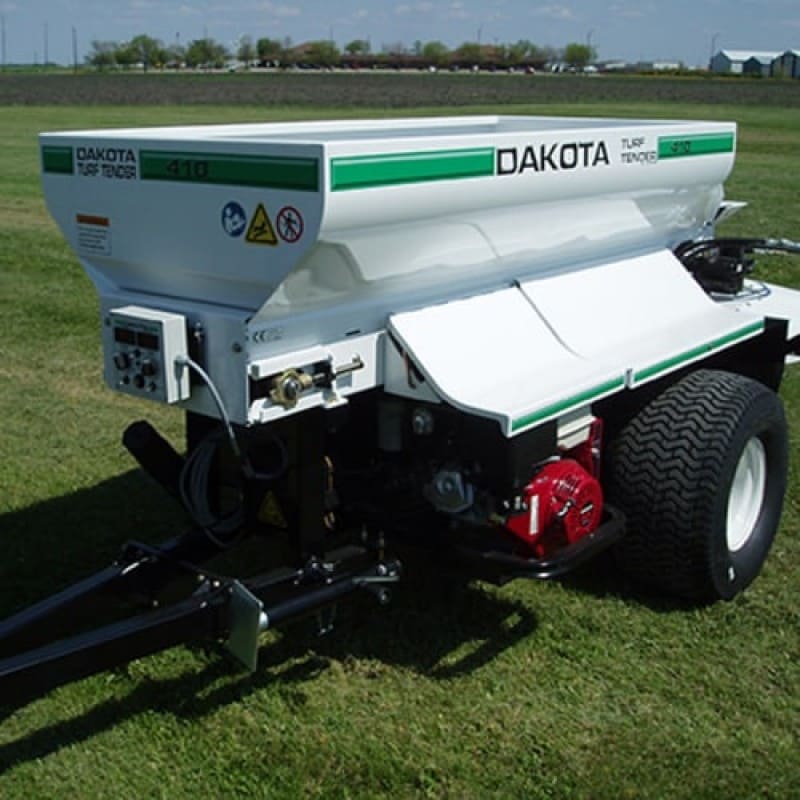

Specifications for the 410 Turf Tender Pull Type

Pull Unit Requirements:

• Requires 3-7 GPM. Oil flow without optional power unit

Overall Dimensions:

• Overall length = 144 in
• Overall width = 60 in
• Height = 50 in
• Weight = 920 lbs.
• Weight = 1240 lbs. (with optional power unit)

Hopper:

• Capacity = 23 cu ft. (.65m3) level, 27 cu ft. (.76m3) heaped
• Trackless 18 in PVC belt (crescent-style)

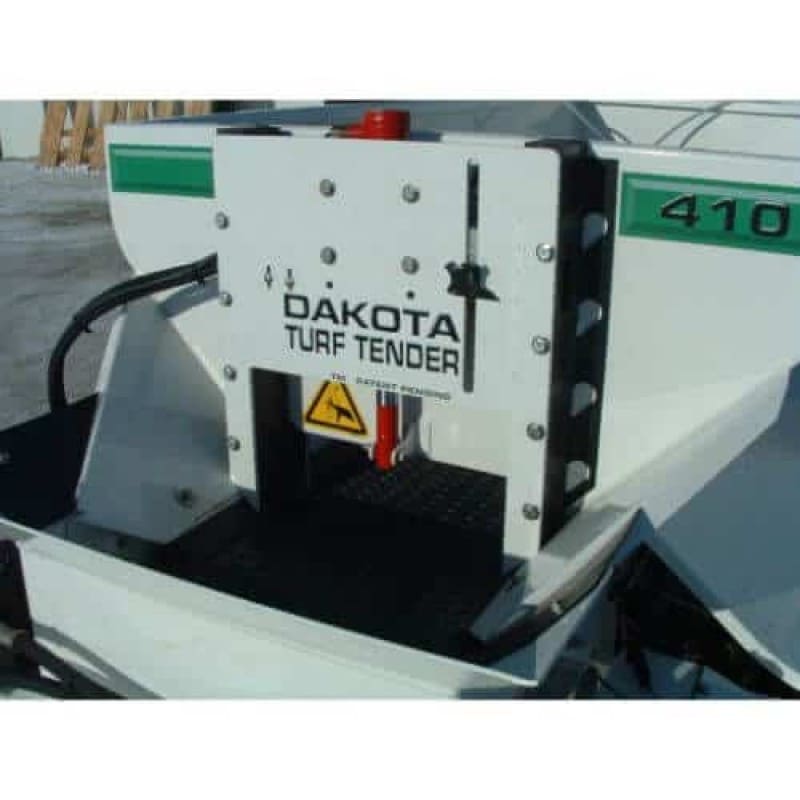

• Rear door adjusted from 0" to 7"
• Powder coat paint
• Hopper length = 76 in

Frame:

• Welded heavy-duty A-frame construction
• Jack stand

Tires:

• 2 Ultra Trac Turf Tires 26.5x14x12

Dual Spinner System:

• 2 Throw discs (24 in diameter, 6 adjustable paddles per disc)
• Quick change
• 2 hydraulic motors, 1 per spinner-disc
• Spreading width 12' to 49' variable
• Spreading application (extremely fine to very heavy)
• Capable of spreading a large variety of materials

Options for the 410 Turf Tender Pull Type

Controls:

• Electric over hydraulic machine (controls belt and spinner speed from the vehicle mounted control panel with speed gauges)
• Manual hydraulic machine (valves on the side of the machine to control the belt and spinner speed) with vehicle mounted on/off switches

Optional Spinners:

• Black spinners (fertiliser)
• Green spinners (grass seed)

Optional Power Unit:

• Honda 11 hp engine
• Electric start
• 72 US Gal. fuel tank
• Pressure = 2500 psi
• Flow = 7.26 GPM
• Reservoir size = 11.5 gal.

Optional Rear Conveyor

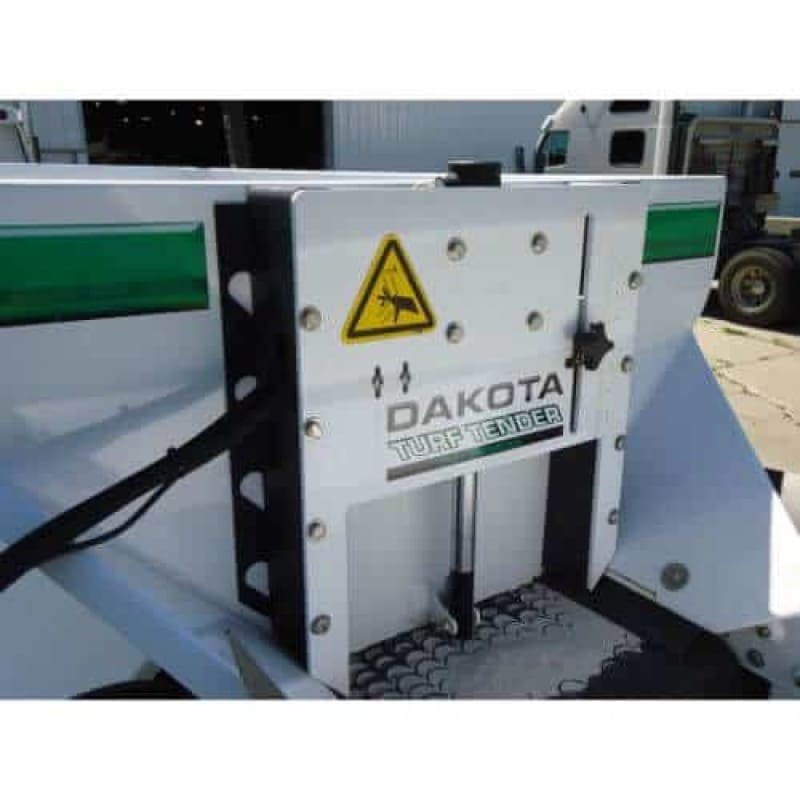

Optional Auto Rear Door

Optional Roll Tarp

---

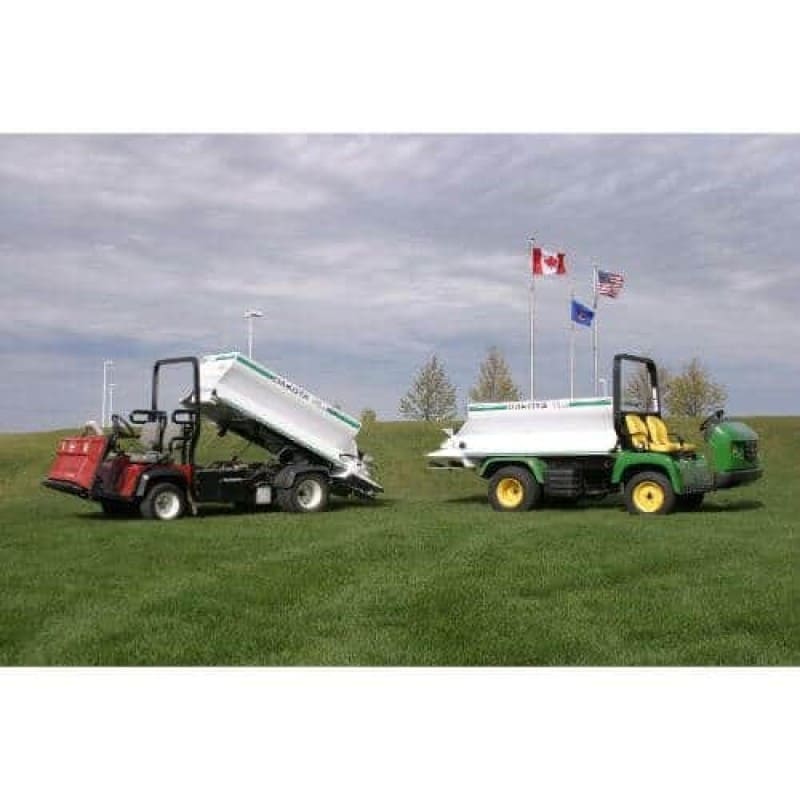

Specifications for the 410 Turf Tender Mounted

Models: Mounted

• Mounts on John Deer Pro Gator™, Toro Workman™, or Jacobsen Truckster™ XD

Requirements:

• John Deere™ PTO Hydraulic kit required on John Deere ProGator™
• DAKOTA Auxiliary hydraulic kit required on Toro Workman™ on models older than 2001, 2002 and newer requires Toro High Flow hydraulics

Overall Dimensions:

• Overall length = 103 in
• Overall width = 60 in
• Height = 54 in
• Weight = 780 lbs. with sub-frame

Hopper:

• Capacity = 23 cu ft. (.65m3) level, 27 cu ft. (.76m3) heaped
  (Note: Do not exceed recommended vehicle load rating for John Deer Pro Gator™, Toro Workman™, or Jacobsen Truckster™ XD)
• Trackless 18 in PVC belt (crescent-style)
• Rear door adjusted from 0" to 7"
• Powder coat paint
• Hopper length = 76 in

Frame:

• Welded heavy-duty sub-frame
• Mounts using existing cylinder and box mount

Dual Spinner System:

• 2 Throw discs (24 in diameter, 6 adjustable paddles per disc)
• Quick change
• 2 hydraulic motors, 1 per spinner-disc
• Spreading width = 12' to 40' variable
• Spreading application is adjustable (extremely fine to very heavy)
• Capable of spreading a large variety of materials

Options for the 410 Turf Tender Mounted

Controls:

• Electric over hydraulic machine (controls belt and spinner speed from the vehicle mounted control panel with speed gauges)
• Manual hydraulic machine (valves on the side of the machine to control the belt and spinner speed) with vehicle mounted on/off switches

Optional Spinners:

• Black spinners (fertiliser)
• Green spinners (grass seed)

Optional Parking Stand:

• Easy on/off using 4 legs
• Rear legs are jack stands

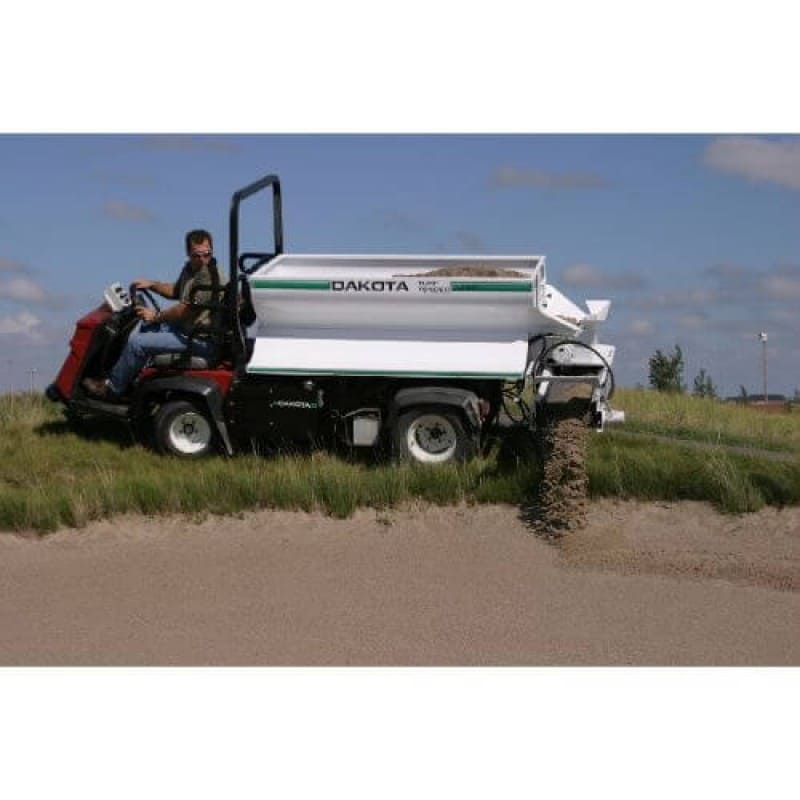

Optional Rear Conveyor

Optional Auto Rear Door
