BROCHURE Unlock the Full Potential of the Workday

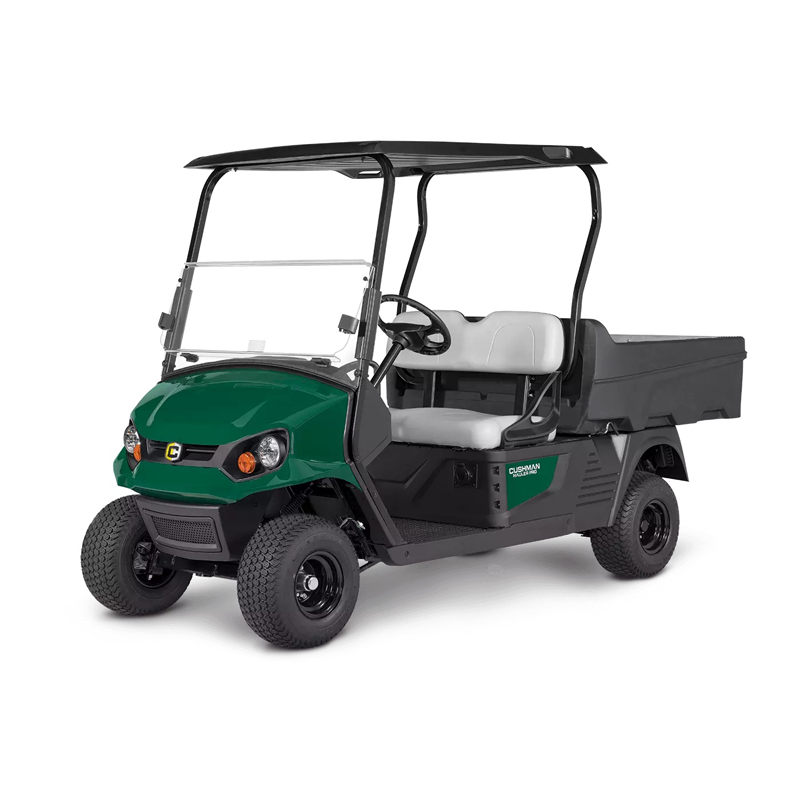

The Hauler PRO is reliable and refined for any job. The remarkable range and zero-maintenance ELiTE lithium powertrain has raised the bar for utility vehicles. Protect your turf with reduced weight, and improve your range even further with the optional ELiTE lithium triple battery pack. Meet the exacting standards of your busy workday with the lower operational costs and superior productivity of the Hauler PRO.
Key Features of Cushman Hauler PRO
- Zero maintenance ELiTE lithium battery
- 1500 LB towing capacity
- 1200 LB load capacity
- 12 cu ft cargo bed
Available Models
The Cushman Hauler PRO is available in ELiTE lithium electric.
ELiTE Lithium Electric - Our maintaenance-free ELiTE batteries powered by Samsung SDI Lithium technology are backed by an unbeaten 5-year battery warranty. The proven efficiency and performance keep vehicles working even through the toughest projects
Brand:
Cushman
| Body and Chassis | |
| Frame | Welded steel with e-coat & DuraShield™ powder coat |
| Body and finish | Injection molded TPO |
| Standard colour | Forest green |
| Dimensions | |
| Overall length | 119 in (302 cm) |
| Overall width | 49 in (125 cm) |
| Overall height W/canopy | 70.5 in (179.1 cm) |
| Wheel base | 76.8 in (195 cm) |
| Front wheel track | 35 in (88.9 cm) |
| Rear wheel track | 38.5 in (97.8 cm) |
| Ground clearance | 4.3 in (11 cm) |
| Cargo box capacity | 12 cu ft (0.34 cu m) |
| Cargo box dimensions | 39 in (L) x 44 in (W) x 12 in (D) (99 cm x 111.8 cm x 30.5 cm) |
| Cargo box material | Roto-Molded Polyethylene |
| Power | |
| Power source | 56.7V Li-Ion Battery |
| Motor type | AC Induction |
| Horsepower (kW) | 14.9 hp (11.1 kW) |
| Electrical system | 48V Primary, 12V Auxiliary |
| Battery (Qty/Type) | 4.2 ELiTE - Twin Pack |
| Battery charger | 811 Watt World Charger |
| Key or pedal start | Pedal |
| Drive train | Motor Shaft Direct Drive |
| Transaxle | Limited-Slip Differential with Helical Gears |
| Speed controller | 350 Amp AC Controller |
| Gear selection | Dash Mounted Forward-Neutral-Reverse / Key Switch |
| Rear axle ration | 16.99:1 |
| Performance | |
| Seating capacity | 2-Person |
| Curb weight | 926 lb (420 kg) |
| Bed load capacity | 800 lb (363 kg) |
| Vehicle load capacity | 1200 lb (544 kg) |
| Speed | 16.5 mph ± .05 mph (26.5 kph ± 0.8 kph) |
| Towing capacity | 1500 lb (680 kg) max |
| Outside clearance circle | 21.5 ft (6.6 m) |
| Steering and Suspension | |
| Steering | Self-Compensating Rack & Pinion |
| Suspension | Leaf Springs w/ Hydraulic Shock Absorbers |
| Service brake | Dual Rear Wheel Mechanical, Self-Adjusting Drum |
| Parking brake | Automatic Electro-Magnetic |
| Tires (Front & Rear) | 18 x 8.5 - 8 (6 - Ply Tires) |
- Zero maintenance
- 5-year battery warranty
- Lightweight footprint
- Increased efficiency
- Upgrade to 6.2 triple pack for extended range
- Standard limited slip differential
- Standard automatic park brake
- Multifunction SOC/Speedometer gauge
- 4-wheel mechanical brakes
- Locking glove box
- Bed dividers
- Floor mount attachment
- Windshield
- Canopy
- Electric bed lift
- 15 cu-ft aluminum bed with L-Track system
- Long-handled tool holders
- Radio holder
- Cargo mesh netting
- LED headlights
- LED taillights/ brake lights
- Ladder/hoop rack (aluminum bed only)
- Rearview mirror
- USB port
- Unique key switch
- Side body colour
- Weather enclosure
- ROPS-certified cab
- Ball cage
- Hubcaps
- Standard rear receiver hitch
- Hour meter
- Rapid on-board charger
- Drop-in refresher (plastic bed only)
