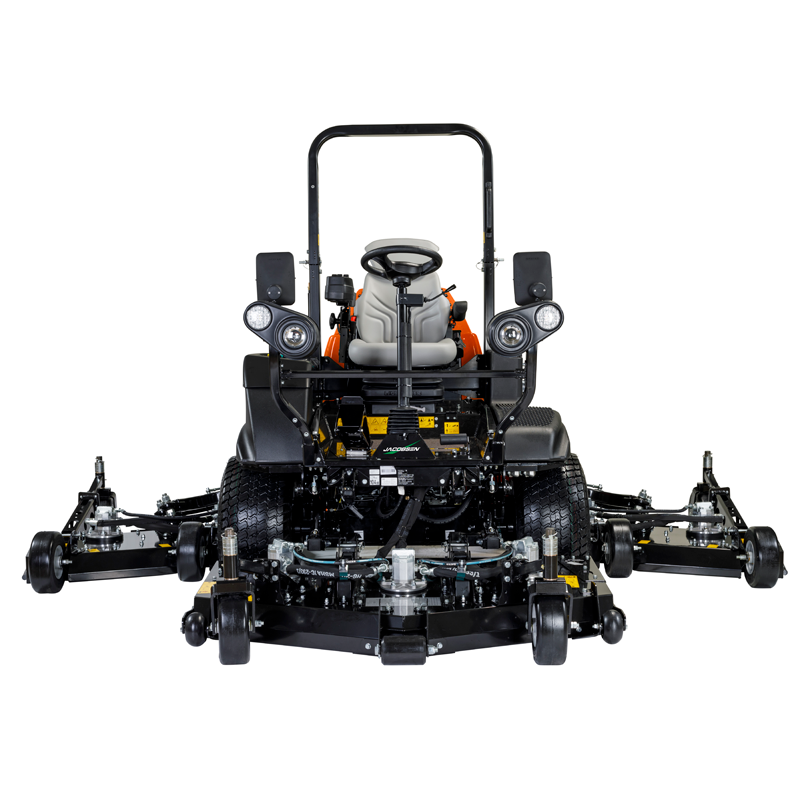

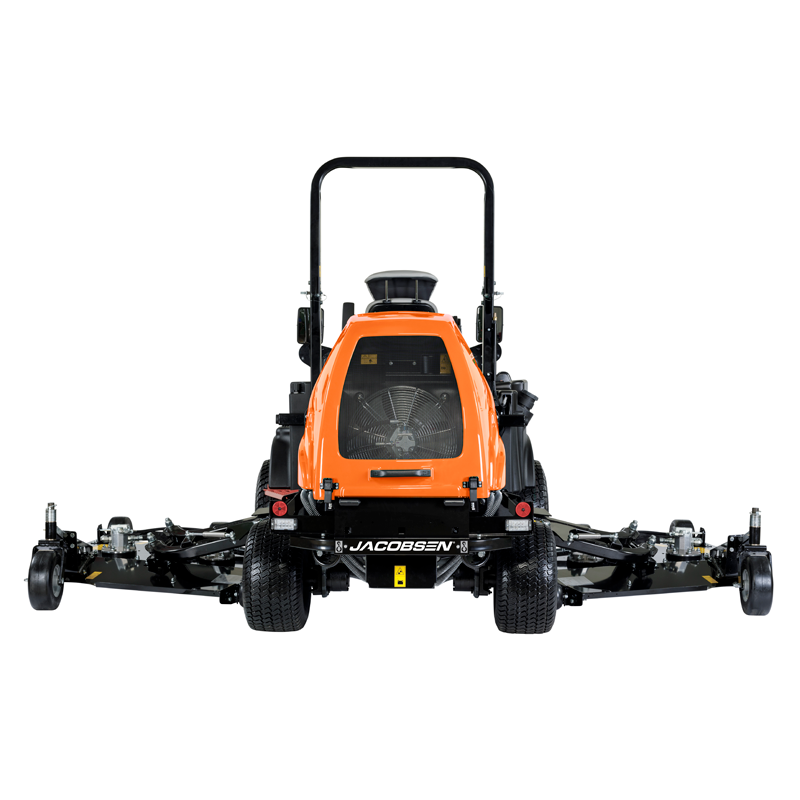

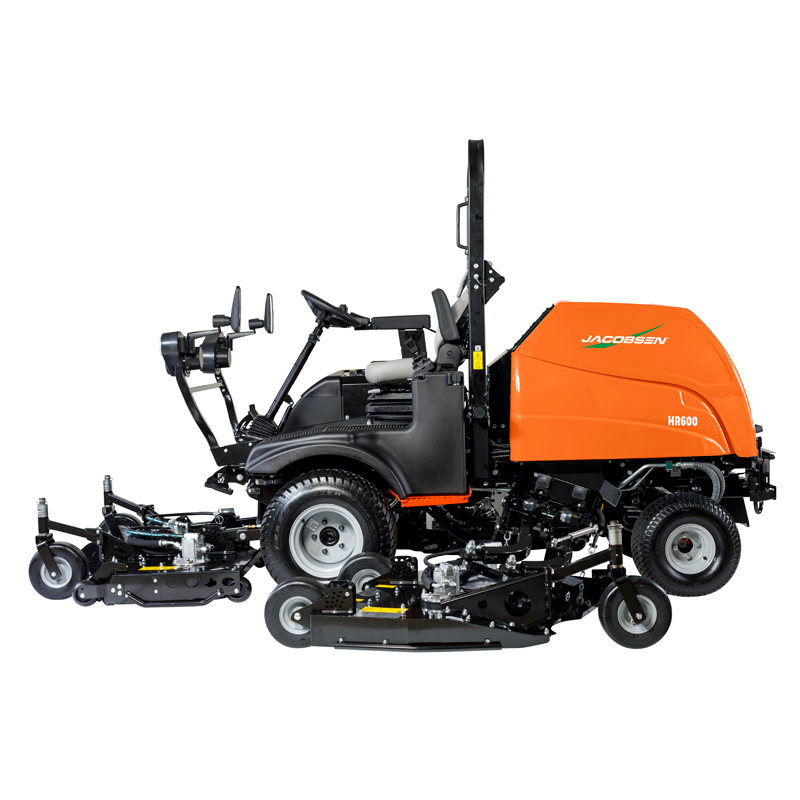

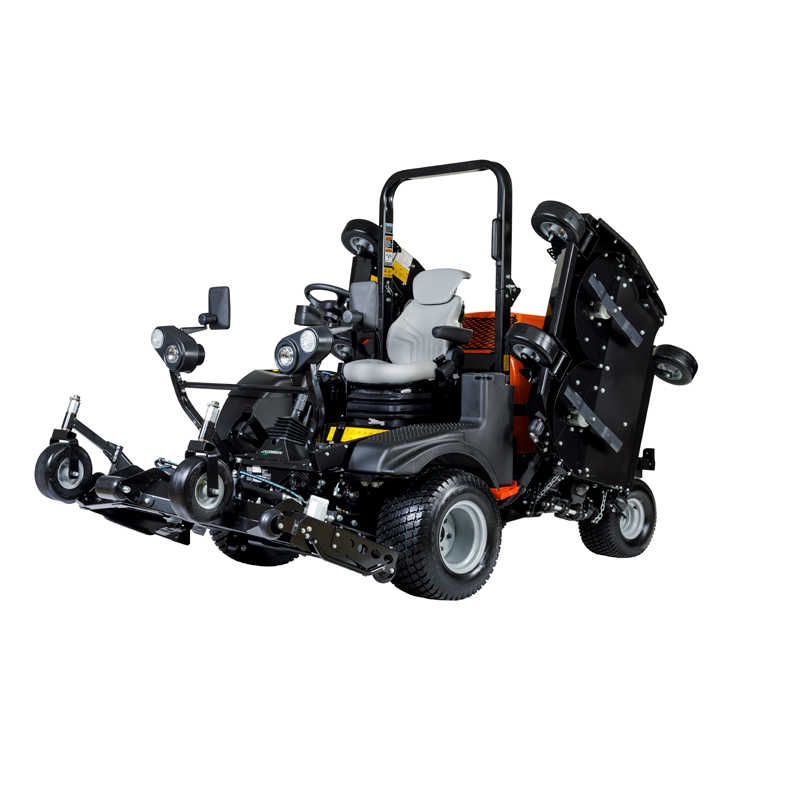

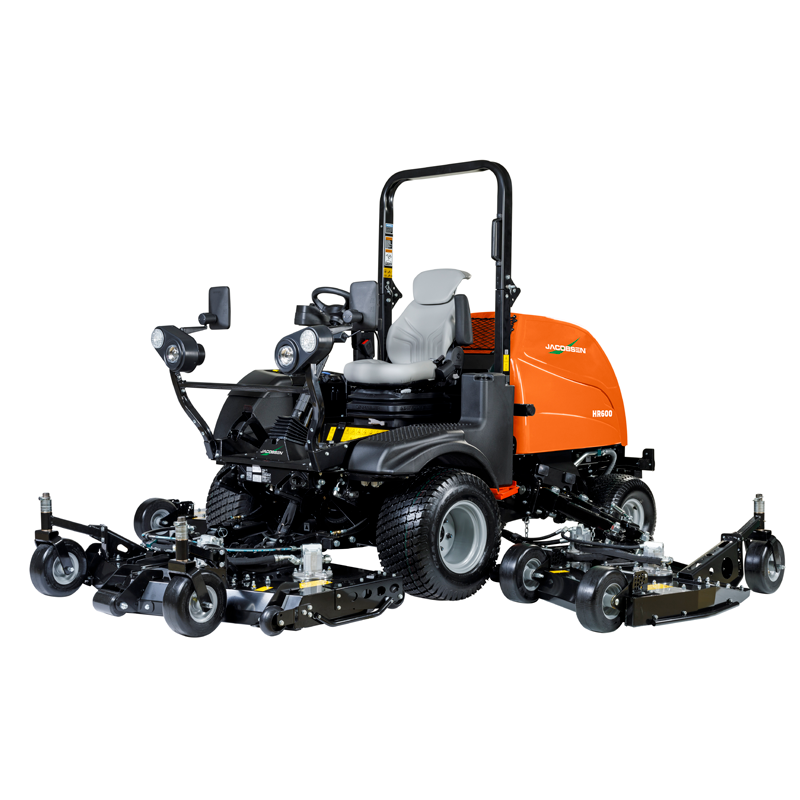

BROCHURE The Jacobsen HR600 large area rotary mower lets you take Jake’s power anywhere. It cuts roughs, surrounds, around obstacles on golf courses, parks and sports fields effortlessly in all conditions. Fitted with MARBAIN® Boron Alloy Steel Blades, it will give you a first-class finish everytime.
Tilt Sensor Technology, will also warn you of safe working angles. The HR600 is low weight for efficiency and fuel economy, combined with zero maintenance decks and unrivalled operator comfort, it will keep you mowing until the work is done.
Key Features of the Jacobsen HR600 Large Area Rotary Mower
- Hydraulically driven, temperature controlled reversing fan

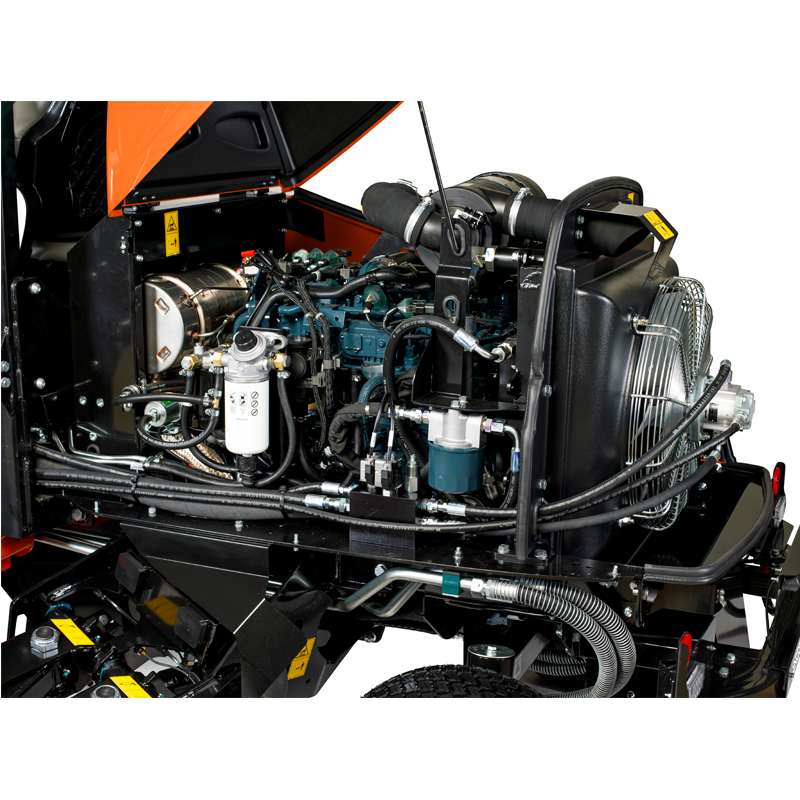

- Trustworthy Kubota® engine & cooling reversing fan

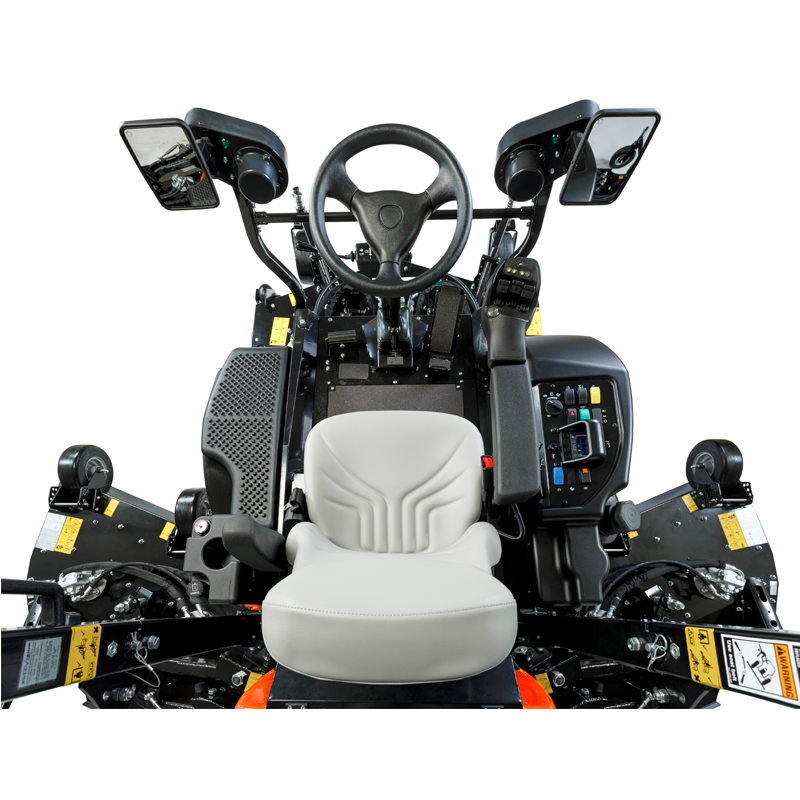

- ISO mounted operator platform for comfortable, productive ride
- Q Amp® variable rate steering system
- Low-maintenance decks means less time greasing & no belt adjustments

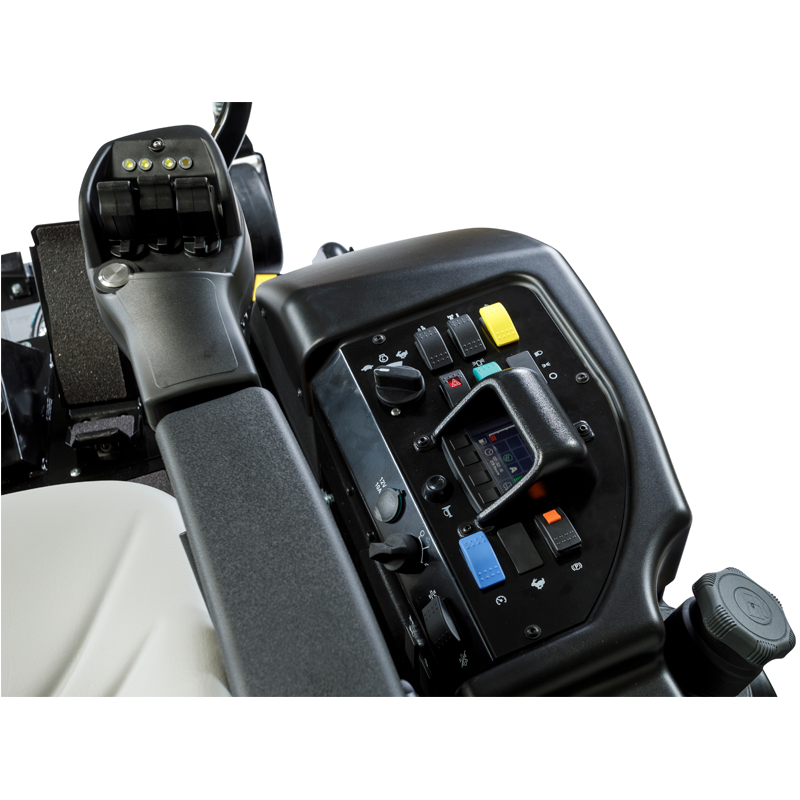

- Operator lift lower controls & onboard diagnostics
- Lightweight durable deck pan design made from high strength steel
- SureTrac™ 4WD parallel-cross-series traction system
Brand:
Jacobsen
| Decks and Cutting Units | |
| Number and Size | 1 x 60” (1.52m) front deck; 2 x 44” (1.12m) wing units |
| Blade Material | MARBAIN® boron alloy steel |
| Deck Lift and Lower | Individual via fingertip operated joysticks |
| Weight Transfer | On demand electrically operated hydraulic weight transfer system |
| Deck Construction | 11 gauge (3mm) Strenx, high strength steel shell |
| Traction, Brakes and Speed | |
| Traction Drive | Hydrostatic closed loop parallel-cross-series SureTrac™ system |
| Deck Drive | Seven individual hydraulic motors with self lubricating integral bearings |
| Hydraulic System | 13.3 gal. (50.2L) reservoir with 10 micron remote charge filters and suction screening at tank. Oil cooler in side by side radiator. |
| Service Brakes | Dynamic through hydrostatic traction system |
| Parking Brakes | Automatic wet parking brakes integrated into wheel motors |
| Steering | Power Steering |
| Mower Speed | 10mph (16.4km/h) |
| Reverse Speed | 4mph (6.4km/h) |
| Weights and Dimensions | |
| Weight (excluding fuel) | 3900lbs (1769kg), 4356lbs (1976kg) with cab |
| Length (less catchers) | 143” (3.62m) front deck down |
| Overall Height (ROPS up) | 83” (2.1m) |
| Wheelbase | 64” (1.65m) |
| Transport Width | 65” (1.67m) |
| Working Width | 143” (3.63m) |
| Warranty | |
| Mower Warranty | 2 Years |
- Road light kit
- Canopy/sunshaden
- Climate controlled cab
- Cab accessories - road light kit, Rear wiper kit
