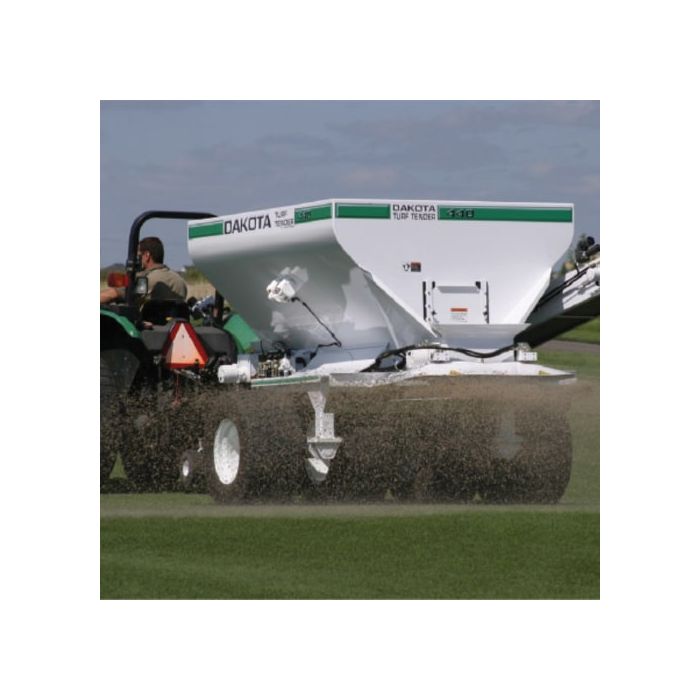

Dakota Turf Tender 440 Topdresser

Make your turf topdressing job easier with the highest quality material handler on the market – the DAKOTA Turf Tender 440.

Complete with a 4.2-yard capacity and an A-frame hitch design, this material handler has the largest capacity with the best handling and the lowest PSI in the industry.

Requires 40 HP tractor and 4-11 GPM hydraulics.

Features and Specifications of the Turf Tender 440 Topdresser

Tractor Requirements:

• Minimum 40 hp
• Hydraulics = 4-11 GPM

Frame:

• Heavy duty A-frame construction
• Side-to-side walking axles
• Jack stand
• Electric brakes (2-wheel standard)

Overall Dimensions:

• Height = 79 in
• Length = 192 in
• Width = 96" to 102"

Hopper:

• Capacity = 4.2 cu ft. (3.21m³) level, 5 cu ft. (3.82m³) heaped
• Dual hydraulic drive both forward and reverse
• Trackless 18 in PVC belt (crescent-style)
• Powder coat paint
• Hopper length = 100 in

Tires (4):

• 1 DAKOTA Turf Tire
• 1 DAKOTA Turf Tire (optional)

Controls:

• Vehicle mount control panel for electric over hydraulic drive system controls all options

Options for the Turf Tender 440 Topdresser

Hopper Doors:

• Electric front door or manual front door
• Hydraulic rear door (with metering gate) or manual rear door metering gate

Side Conveyor:

• Belt width = 14 in (crescent belt)
• Conveyor length = 156 in
• Conveyor discharge height = 55" to 80"
• Electric chute

Box Scraper:

• 80 in blade length (replaceable cutting edge)
• Quick disconnect
• Hydraulic down pressure
• Float control

Dual Spinner System:

• 2 throw discs (24 in diameter, 6 adjustable paddles per disc)
• Quick change
• 2 hydraulic motors, 1 per spinner disc
• Spreading width = 12- to 40- foot variable
• Spreading application (extremely fine to very heavy)
• Capable of spreading a large variety of materials

Optional Spinners:

• Black spinners (fertilizer)
• Green spinners (grass seed)

Other Options:

• Hopper vibrator
• 4-wheel brake
• Hydraulic load braker

Optional Auto Rear Door

Optional Roll Tarp

Optional Load Breaker

Optional Blender
