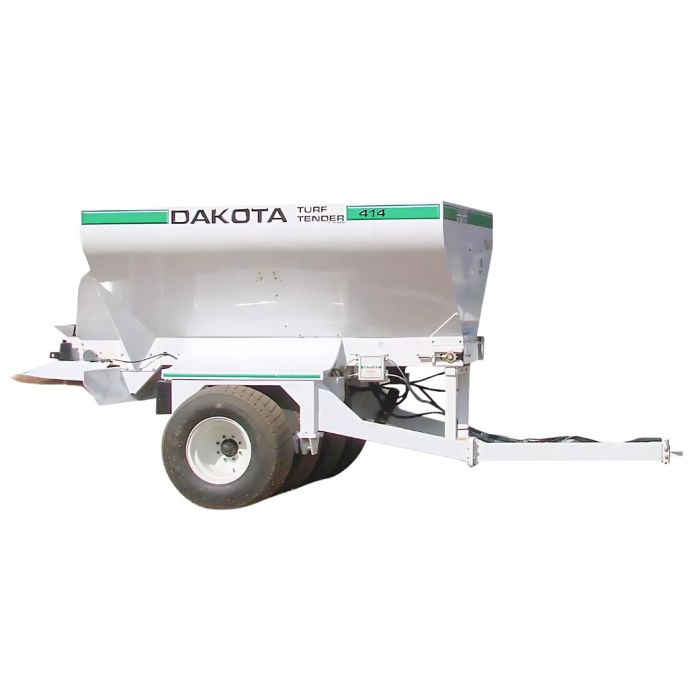

Dakota Turf Tender 414 Topdresser

Get more done faster with the Dakota 414 Turf Tender. This top dressers has all features of the Dakota 410 with an even larger capacity. The 4-yard 414 Turf Tender requires compact or midsize tractors for towing.

Requires 40 HP tractor and 7-11 GPM hydraulics

Turf Tender 414 Features & Specifications

Frame:

• Heavy duty A-frame construction
• Side-to-side walking axles
• Jack stand

Controls:

• Electric over hydraulic machine (controls belt and spinner speed from the vehicle-mounted control panel with speed gauges)
• Manual hydraulic machine (valves on the side of the machine to control the belt and spinner speed) with vehicle-mounted on/off switches

Hydraulic System:

• 2500 PSI or 138 BAR MAX
• 1 bank, 2 lines

Maximum Transport Speed:

• Empty = 15 mph or 24 kph; not for highway use
• Loaded = Dependent on terrain conditions for safe operation

Hopper Door:

• Manual rear metering gate

Dual Spinner System:

• 2 throw discs (24 in diameter, 6 adjustable paddles per disc)
• Quick change
• 2 hydraulic motors, 1 per spinner disc
• Spreading width = 12- to 40- foot variable
• Spreading application is adjustable (extremely fine to very heavy)
• Capable of spreading a large variety of materials

Optional Spinners:

• Black spinners (fertiliser)
• Green spinners (grass seed)

Hopper:

• Trackless 18 in PVC belt (crescent style)
• Powder coat paint
• Capacity =
  • 2 cu yds (3.21m³) level
  • 5 cu yds (3.82m³) level

Tires:

• 1 DAKOTA Turf Tire or 33x20x16.1 DAKOTA Turf Tire

Tractor Requirements:

• Horsepower = Minimum 40 hp
• Hydraulics = 7-11 GPM

Overall Dimensions:

• Height = 79 in
• Length = 188 in
• Width = 96/102 in
• Hopper length = 100 in

Shipping Weight:

• 3,000 lbs or 1361 Kg

Maximum Weight:

• 13,000 lbs or 5,897 Kg GVW
