BROCHURE The VERTI-cutter’s patented swing-hitch allows the unit to turn during operation increasing manoeuvrability and the belt drive with 12” diameter blades provides a faster blade RPM (tip speed) improving quality of cut.

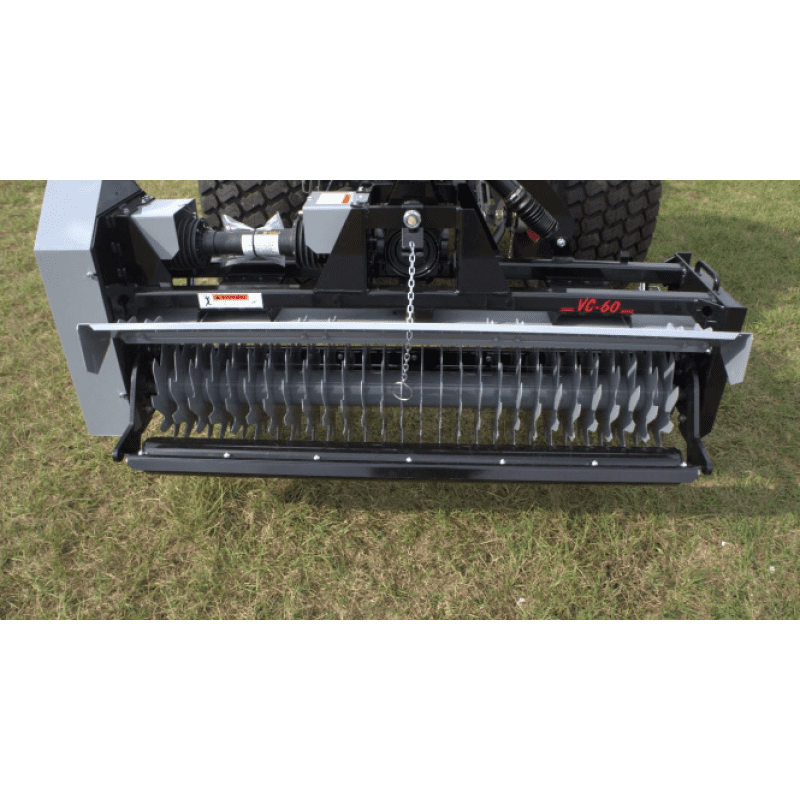

Key features of the VERTI-cutter/Scarifier VC60
- Double Rollers – The double roller depth gauge system allows consistent depth control over undulations. 1 1/2” spacing available now
- Skids – The depth gauge skids are directly centred under the shaft allowing the skids to float over level surfaces. 2” spacing only.
Product specifications for the VERTI-cutter/Scarifier VC60
- Working Width: 54”
- Blades: 10GA Carbide Tip, 10GA Hardened Steel
- Blade Spacing: Rollers 1.5 - 2", Skids 2" Only
- Blade Depth Control: 0 - 1 7/8”
- Blade Shaft: 1 5/8” Hex Stress Proof
- Blade Rotation: Forward
- Hitch: Patented 3 PT CAT.1 Trailing Hitch
- Drive: 540 PTO Gearbox, 3 belts
- Required HP: 20-45 Varies by Cutting Depth
- Frame: All Welded Steel Construction
- Weight: 900 lbs
- Dimensions: 70” W, 46” L, 41” H
- Gearbox: Heavy Duty 42 HP (31 KW)
Brand:
1st Products
Surface Type:
Golf greens, tees, fairways and sports fields.
